The 4 axis filament winding machine links four movements so the mandrel rotation and fiber feed stay in step. The gantry frame leaves more open space around the mould, which helps loading, watching the first yarn path and cleaning resin near the work area. Operators can set angle, layer number and speed from the control system. Slow sections can be used near end areas when closer fiber placement is needed. The tension unit, yarn rack and resin bath are placed near the travel line so daily checking is simple.
The set can include gantry frame, winding head, tailstock, moving trolley, guide nozzle, resin bath, yarn rack, servo control cabinet, tension unit and safety parts.
Product Parameters
|
Parameter |
Value |
|
Product diameter |
Φ10-Φ1000 mm |
|
Product length |
≤6000 mm |
|
Winding angle |
1°-89° |
|
Control system |
Four-axis linkage servo + CNC |
|
Structure |
Gantry type |
Product Advantages
4 axis filament winding machine movement is linked, so the path is easier to repeat.
The gantry body gives more room for mould loading and checking.
Servo control helps combine slow and fast sections in one plan.
Main Applications

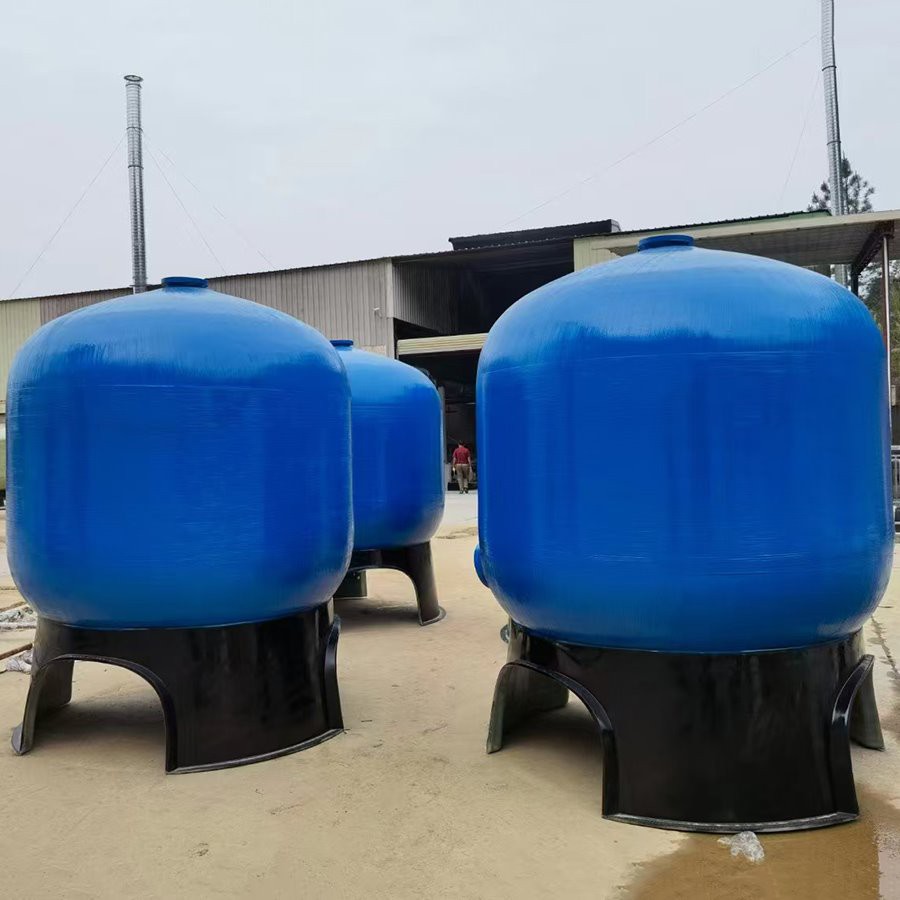

FRP tanks, small vessels and cylinder type products.
Composite parts using 1° to 89° winding paths.
Work areas where open access around the mould is useful.
Batch production with the same diameter and layer plan.
FAQ
Q: What is the listed product length?
A: The product length can be up to 6000 mm in this range.
Q: Can the winding angle be adjusted?
A: Yes. The angle can be set from 1° to 89° according to the plan.
Q: Can 4 axis filament winding machine settings be checked before shipment?
A: Yes. Trial running photos or videos can be provided.
