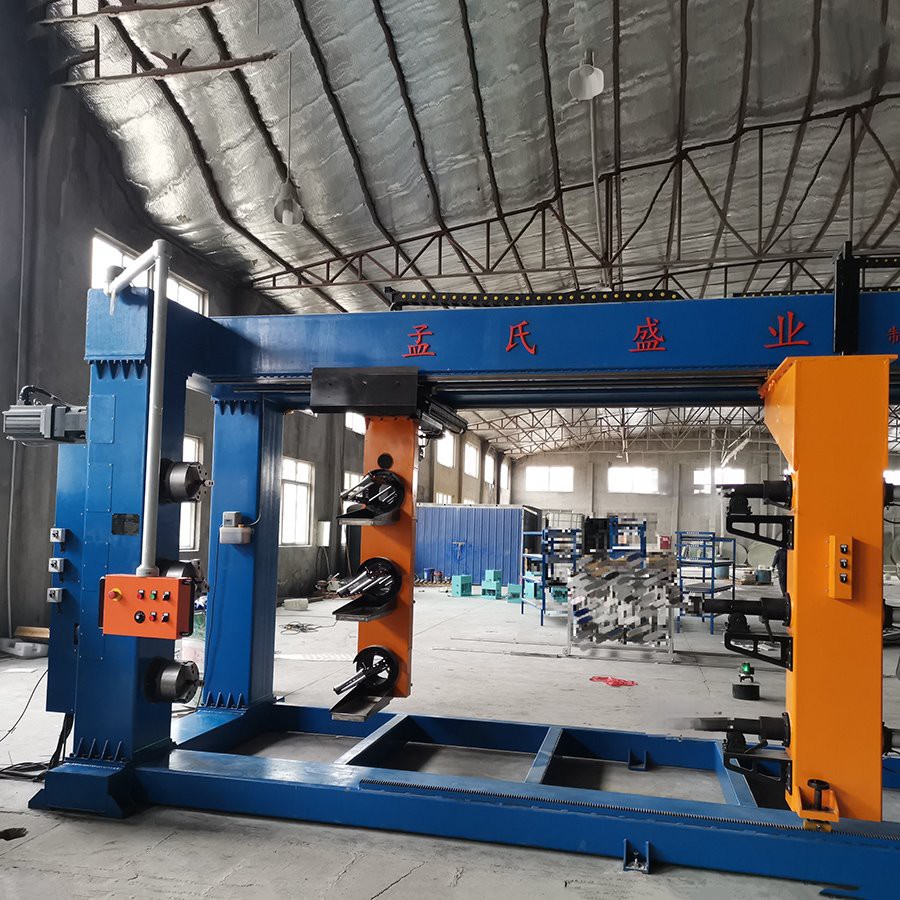

The cnc filament winding machine has a headstock, tailstock, moving carriage and fiber guide system. The mandrel turns while the carriage moves along the set track, so yarn can lie at the planned angle. The control panel stores speed, pitch and layer data. Operators can check the first pass before normal production, which helps find a wrong angle early. The resin bath, yarn rack and tension unit are close to the travel path for daily cleaning and yarn change. Space near the mandrel is kept open for surface checking during winding.
The line can include headstock, tailstock, trolley, resin bath, guide nozzle, yarn rack, tension unit, electric cabinet and safety guard. Extra mandrels can be matched after size checking.
Product Parameters
|
Parameter |
Value |
|
Product diameter |
DN20-DN2500 mm by model |
|
Product length |
0.5-12 m by model |
|
Winding speed |
0.5-2 m/s |
|
Control method |
CNC program control |
|
Product shapes |
Pipe, tank, cone and special mandrel |
Product Advantages
CNC filament winding machine programs make repeated batches easier to run.
The carriage path is steadier than manual fiber placement.
Speed and layer data can be checked before full production starts.
Main Applications
Repeated pipe and tank production with fixed size data.
Sample work where angle and layer settings change often.
Composite cone or shaped mandrel parts.
Lines using glass fiber, carbon fiber or basalt fiber.
Our Services
Drawing checking, layout discussion, trial running photos, simple operation notes and wooden case packing can be provided.
For cnc filament winding machine selection, mandrel size, fiber type, resin area and service space are checked before production.
FAQ
Q: Can one line work with different diameters?
A: Yes, if the model range and mandrel support match the product.
Q: What details are needed first?
A: Diameter, length, fiber type, resin process, winding angle and workshop space.
Q: Can cnc filament winding machine settings be saved?
A: Yes. Normal programs can save repeat data for later batches.
