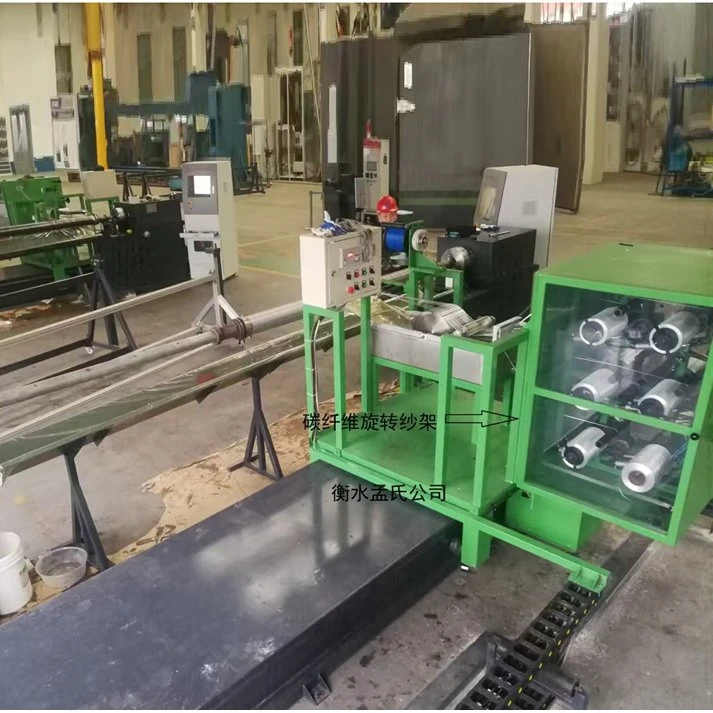

Our continuous filament winding machine is used when pipe or round composite products need steady fiber feed over long production runs. Fiber feeding, resin wetting, mandrel rotation, and carriage travel run together under the control program. This helps reduce stop marks between layers and keeps the winding path stable through the product length.
Product Parameters
|
Control Type |
Continuous winding with coordinated carriage movement |
|
Winding Angle |
Adjusted according to product structure |
|
Product Length |
Configured by mold and line layout |
|
Line Sections |
Fiber feeding, resin wetting, winding and downstream handling |
|
Optional Equipment |
Curing, cutting, demolding and pressure testing |
|
Application |
Continuous production of round composite products |
|
Control Mode |
Computer control with manual and semi-automatic modes |
|
Suitable Product |
FRP pipe, epoxy pipe, composite tube, and pressure shell |
Product Advantages
The continuous filament winding machine keeps fiber feed and mandrel rotation running in the same rhythm, so layer breaks are reduced.
Coordinated carriage travel helps keep the winding angle closer to the set value from one end of the product to the other.
The line can connect with curing, cutting, demolding, and pressure testing sections after the winding host without stopping the main winding route.
Main Applications
The continuous filament winding machine is used for continuous FRP pipe runs, GRE pipe, pressure pipe, cable protection tube and long cylindrical composite products.
FAQ
Q: What is the main benefit of continuous winding?
A: It keeps fiber feeding and mandrel movement connected for steadier long-run production.
Q: Can downstream equipment be added?
A: Yes. Curing, cutting, demolding and pressure test sections can be arranged after the winding host.
Q: What production data should be confirmed?
A: Product size range, planned length, winding angle, resin system, and required line speed should be confirmed.
