The frp storage tank winding machine uses a headstock, tailstock, carriage, fiber guide, resin bath, and control system. The tank mould rotates while the carriage moves along the body. Angle and layer settings help the fiber cover the shell, end area, and straight cylinder part. Stable tension helps reduce loose yarn and uneven marks. The screen can store basic programs for repeat tank sizes. Resin cleaning space, yarn rack position, and mandrel lifting area should be left clear.
The frp storage tank winding machine can include winding head, tailstock, carriage, resin bath, guide nozzle, yarn rack, tension device, electrical cabinet, and safety guards. Extra mandrels, curing support, or demoulding tools can be matched by drawing.
Product Parameters
|
Parameter |
Value |
|
Product diameter |
Φ10-Φ1000 mm |
|
Product length |
≤6000 mm |
|
Winding angle |
1°-89° |
|
Control system |
Four-axis linkage servo |
|
Computer |
Industrial computer |
Product Advantages
Four-axis linkage helps the carriage and mandrel keep a planned movement.
Winding angle can be changed for different tank sections and layer needs.
Stored settings make repeat tank sizes easier to run again.
Main Applications

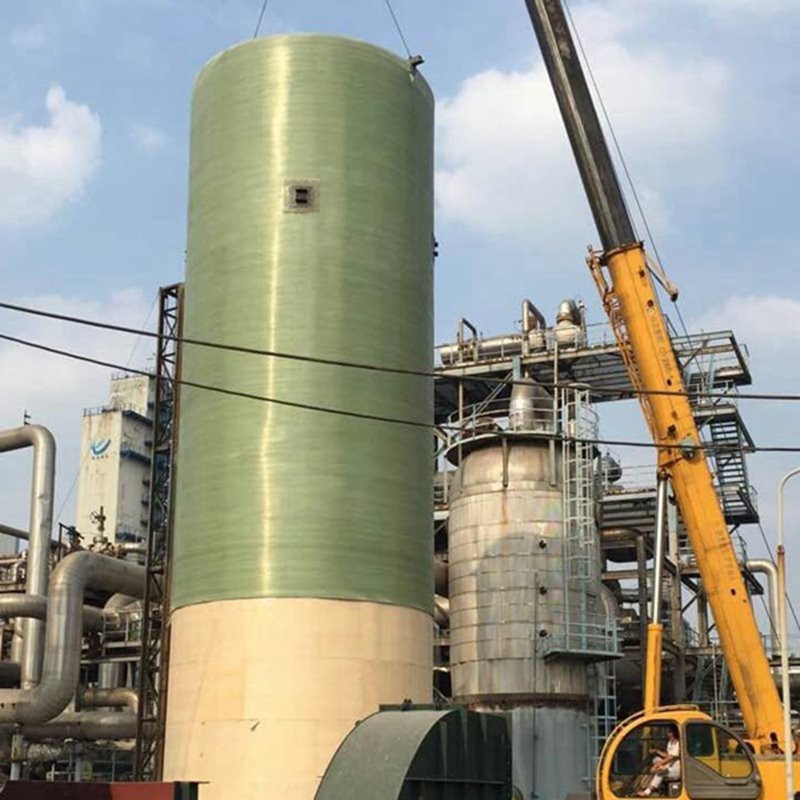

1. Small FRP tanks, GRP vessels, softened water tanks, and chemical storage tanks.
2. Cylinder parts that need glass fiber or carbon fiber reinforcement.
3. Workshops making repeated tank bodies with different mould lengths.
The frp storage tank winding machine is useful when hand wrapping is too slow or layer quality is hard to keep.
FAQ
Q: Can the tank size be changed?
A: Yes. The mandrel, tailstock distance, and carriage travel should be checked first.
Q: Can it wind different fibers?
A: Glass fiber, carbon fiber, and basalt fiber can be discussed by feeding method.
Q: What should be checked before shipment?
A: Running video, photos, angle setting, and basic motion data can be checked.
