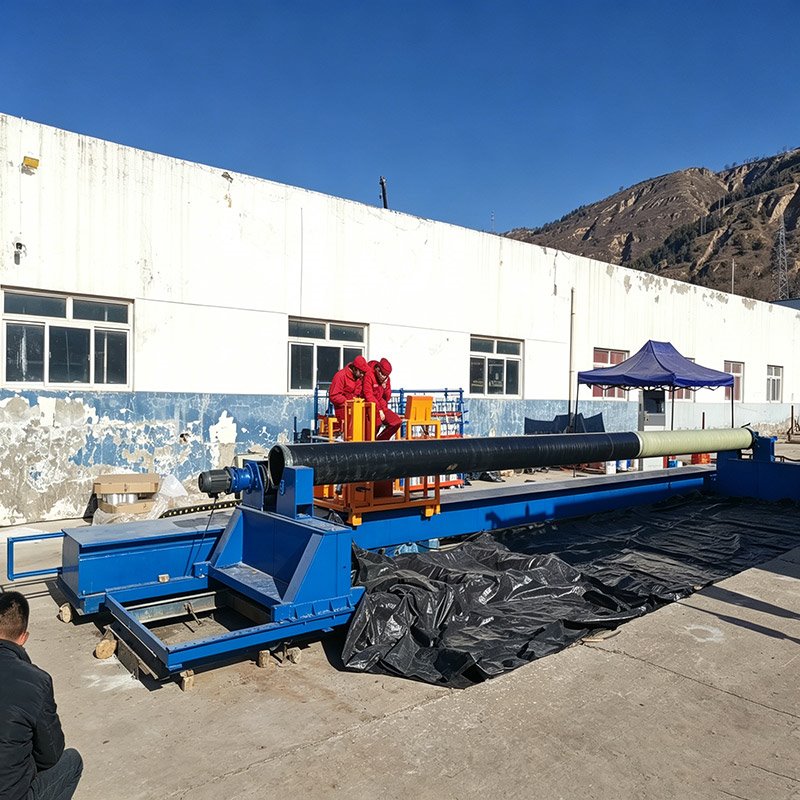

Our GRE Pipe Winding Machines are used for glass fiber reinforced epoxy pipe production. The line controls winding angle, epoxy wet-out, curing process, and pipe wall repeatability. It can work with demolding, end finishing, and pressure testing sections when the pipe needs a complete production route.
Product Parameters
|
Pipe Range |
Selected by GRE pipe diameter and pressure grade |
|
Resin System |
Epoxy resin matched to pipe service |
|
Curing Method |
Steam or heating process by line design |
|
Process Sections |
Winding, curing, cooling, demolding and end finishing |
|
Inspection Options |
Dimension check, thread forming and pressure testing |
|
Application |
GRE pressure pipe and corrosion-resistant pipe production |
|
Connection |
Threaded connection for 2 in-12 in; bonded connection for 12 in reference |
|
Testing |
Hydrostatic pressure test and related API/ASTM checks |
|
Main Materials |
Glass fiber and epoxy resin system |
Product Advantages
GRE Pipe Winding Machines control epoxy wet-out and fiber placement, helping pressure pipe walls keep a steadier structure.
Curing and cooling sections support pipe shape before demolding and end machining.
End finishing and pressure testing can follow the winding section, so inspection work is linked with the production line instead of being described as a product advantage.
Main Applications
GRE Pipe Winding Machines are used for GRE pressure pipe, oilfield pipe, chemical process pipe, industrial transport pipe and corrosion-resistant pipeline production.
FAQ
Q: What products can this line make?
A: It is used for glass fiber reinforced epoxy pipe and related pressure pipe products.
Q: Which GRE pipe data should be confirmed?
A: Pipe diameter, pressure class, pipe length, resin system, and curing requirement should be confirmed.
Q: Can testing equipment be matched?
A: Yes. Cutting, threading and pressure test equipment can be included.
