Carbon Fiber Filament Winding Machine

The carbon fiber filament winding machine is used for light and strong composite parts, such as tubes, shafts, rollers, and small vessels. The main points are mandrel size, tow size, winding angle, yarn tension, carriage speed, and layer count.
It is often chosen when hand lay-up is too slow or when the same part needs a cleaner fiber line. Before a new job starts, the mandrel, resin, fiber tow, and end shape should be checked together.

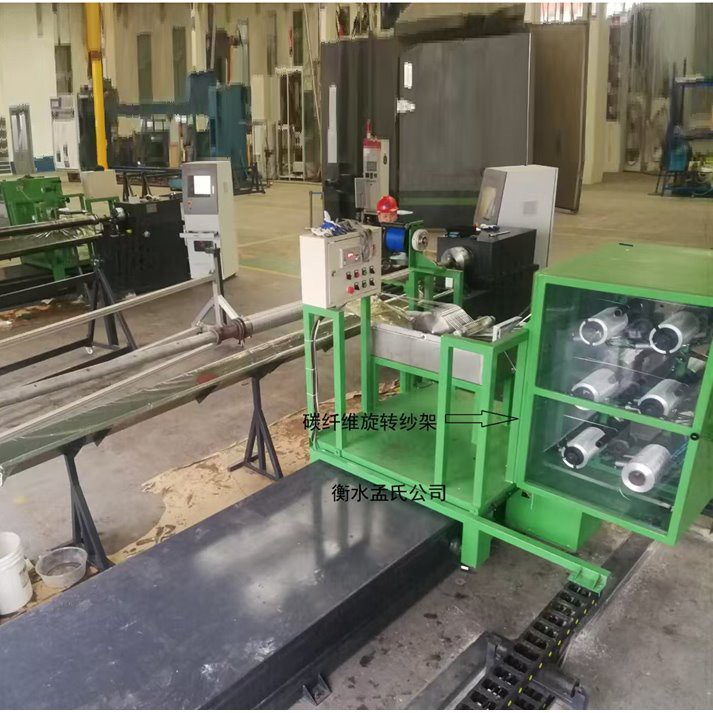

The carbon fiber filament winding machine has a headstock, tailstock, carriage, yarn guide, tension unit, resin bath, and control cabinet. The mandrel turns while the carriage moves along the set path. A short trial pass is useful because carbon fiber shows loose lines quickly. If tension is too high, the end area may pull too hard. If it is too low, the layer may look soft or uneven.

The machine should also leave room for yarn change, resin cleaning, and layer checking. For long tubes, support must stay steady. For small parts, the guide should move smoothly so the fiber does not gather at one side.

Product Parameters

Parameter	Value
Product type	Tube, shaft, roller, vessel, and special mandrel parts
Product length	0.5-12 m by layout
Winding angle	Set by program and part design
Winding speed	0.5-2 m/s reference range
Control method	CNC / servo control
Fiber type	Carbon fiber tow
Main parts	Headstock, tailstock, carriage, resin bath, tension unit

Product Advantages

The fiber path can be set before work, so repeat orders are easier to follow.

Tension checking helps reduce loose fiber and surface marks.

It suits small trial parts and longer tube work.

The open work area makes cleaning and yarn change easier.

Main Applications

1. Carbon fiber tubes for sports goods, tools, and light machine parts.

2. Composite shafts, rollers, sleeves, and test pieces.

3. Small pressure vessels and research cylinders.

4. Batch winding work where the same angle must be repeated.

FAQ

Q: Can it work with different carbon fiber tow sizes?

A: Yes. The tow size should match the guide, tension unit, and resin bath.

Q: What should be confirmed first?

A: Mandrel diameter, product length, winding angle, resin type, fiber tow, and work space.

Q: Can it make both tubes and small vessels?

A: Yes, the carbon fiber filament winding machine can do both when the mandrel support and program path fit the shape.
